Encoder - ENC Series - Hollow Absolute Value Single Encoder -EF-S029-AR0H
Inductive absolute position encoder.
The maximum speed is 8000rpm.
Support self calibration and secondary calibration.
Immune magnetic field interference.
Large hollow design, flexible installation, and more convenient shaft threading.
Flexible configuration of output bit width ranging from 17 to 23 bits.
1.1 Encoder stator

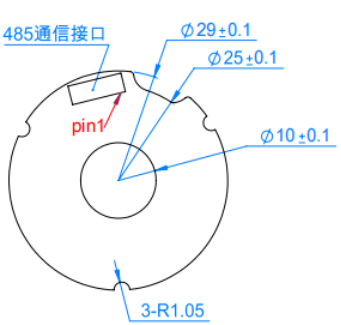

Picture 1. Front of stator

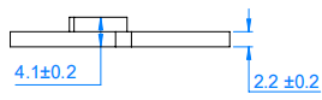

Picture 2.Stator side
1.2 Encoder rotor
Picture3. Front of rotor
Picture 4. On the side of the rotor
|
2. Product Introduction |
|||
|
Encoder model |
EF-S029-AR0H |
||
|
Encoder type |
Single loopabsolute value |
Absolute accuracy |
± 0.01° |
|
Angular resolution |
17~23bit, default 23bit |
Repeatability accuracy |
±0.003° |
|
Power supply voltage |
5V±0.25V |
Rated speed |
≤8000rpm |
|
Communication interface |
RS485 |
Typical installation AirGap |
0.5mm±0.2mm |
|
Communication protocol |
Tama River |
Axial movement |
≤ ±0.1mm |
|
Data Baud Rate |
2.5Mbps |
Radial deviation |
≤ ±0.1mm |
|
Communication response frequency |
≤16kHz |
Maximum current consumption |
≤60 mA |
|
Operating temperature |
Storage temperature |
-40°C~125°C |
|
|
Power-on time |
≤ 65 ms |
Transmission delay (compensated) |
≤ 5 μs |
